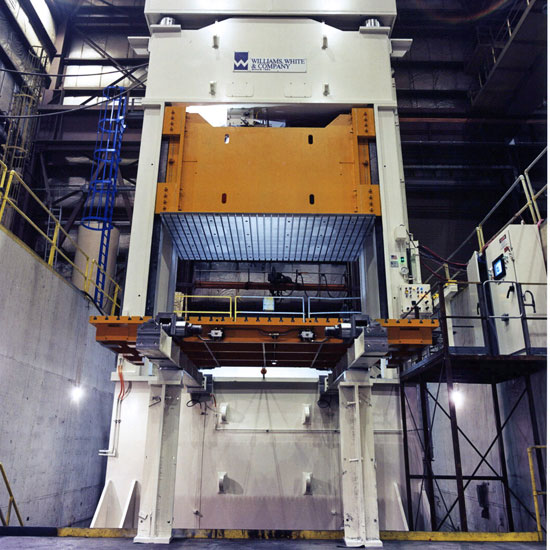

2500 Ton Housing Type Molding Press
With Rolling Bolster
SPECIFICATIONS - C4834
| Tonnages (U.S. Tons) | |
|---|---|
| Pressing (Gross/Net) | 2500 Tons |
| Stripping (Gross/Net) | 300 Tons |
| Net Lift @ Fast Open | 40 Tons |
| Net Lift @ Die Setup | 80 Tons |
| Rolling Bolster Capacity | 80 Tons |
| Dimensions (Inches) | |
| Daylight (Between Face of Bed Bolster & Slide Bolster) | 120" |
| Stroke | 96" |
| Shut Height | 24" |
| Die Space (Right to Left x Front to Back) | 180" x 96" |
| Rolling Bolster (Right to Left x Front to Back) | 180" x 96" |
| Slide Bolster (Right to Left x Front to Back) | 180" x 108" |
| Between Housings (Right to Left) |
182" |
| Floor to Face of Rolling Bolster | 12" |
| Rolling Bolster Travel | To Be Specified |
| Direction of Rolling Bolster Travel | Out Front of Press |
| Operating Speed (Inches/Minute) | |
| Fast Close | 1200 Inches/Min |
| Slow Close | 65-250 Inches/Min |
| Pressing | 6-65 Inches/Min |
| Stripping | 20-100 Inches/Min |
| Slow Open | 100-450 Inches/Min |
| Fast Open | 600 Inches/Min |
| Rolling Bolster Traverse Speed | 300 Inches/Min |
