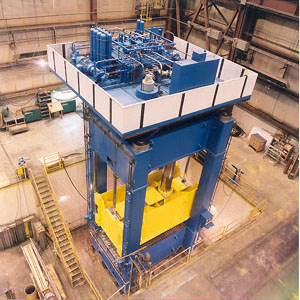

2875 Ton Servo Leveling Molding Press
SPECIFICATIONS - 4799
| Capacity (U.S. Tons) |
| Pressing (Gross/Net) |
2875/2500 Tons |
| Stripping |
750 Tons |
| Net Lift @ Fast Open |
55 Tons |
| Right to Left |
35,800 Inch-Tons |
| Front to Back |
15,900 Inch-Tons |
| Dimensions (Inches) |
| Daylight |
144" |
| Stroke |
120" |
| Shut Height |
24" |
| Level System Stroke |
8" |
| Die Space |
168" x 108" |
| Operating Speed (Inches/Minute) |
| Fast Close |
800 Inches/Min |
| Slow Close |
30-300 Inches/Min |
| Pressing |
3-30 Inches/Min |
| Stripping |
3-30 Inches/Min |
| Fast Open |
700 Inches/Min |
