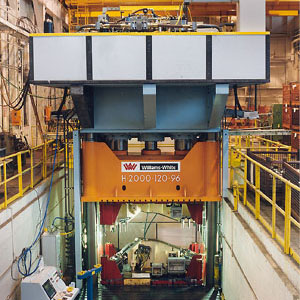

2000 Ton Hydroforming Press
SPECIFICATIONS - 4774
| Capacity (U.S. Tons) | |
|---|---|
| Pressing (Gross/Net) | 2000 Tons |
| Intermediate Pressing | 500 Tons |
| Stripping | 200 Tons |
| Net Lift @ Fast Open | 25 Tons |
| Water Forming Pressure | 10,000 PSI |
| Dimensions (Inches) | |
| Daylight | 100" |
| Stroke | 60" |
| Shut Height | 40" |
| Die Space | 120" x 96" |
| Operating Speed (Inches/Minute) | |
| Fast Close | 1000 Inches/Min |
| Intermediate Pressing | 25-275 Inches/Min |
| Pressing | 7-70 Inches/Min |
| Stripping | 30-200 Inches/Min |
| Fast Open | 900 Inches/Min |
