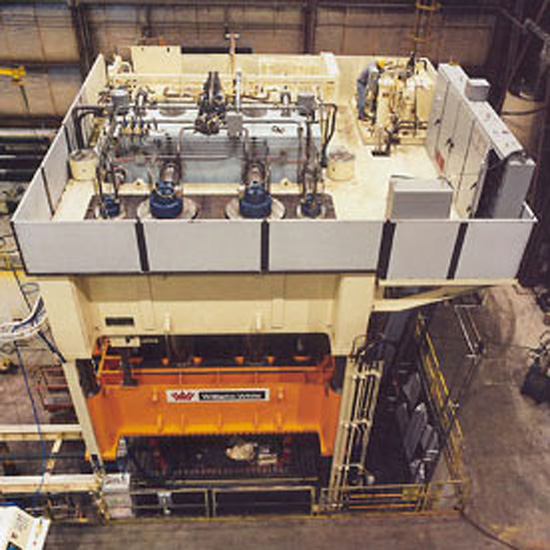

5000 Ton Hydroforming Press
With Rolling Bolster
SPECIFICATIONS - 4781
| Capacity (U.S. Tons) | |
|---|---|
| Pressing (Gross/Net) | 5000 Tons |
| Stripping | 200 Tons |
| Net Lift @ Fast Open | 30 Tons |
| Water Forming Pressure | 25,000 PSI |
| Dimensions (Inches) | |
| Daylight | 112" |
| Stroke | 72" |
| Shut Height | 40" |
| Die Space | 200" x 96" |
| Operating Speed (Inches/Minute) | |
| Fast Close | 700 Inches/Min |
| Intermediate Pressing | 15-150 Inches/Min |
| Pressing | 3-30 Inches/Min |
| Stripping | 15-150 Inches/Min |
| Fast Open | 525 Inches/Min |
